Nginx – Virutal Host

Step 1 :  Update System Repositories

yum update

Step 2 : Upgrade System Repositories

yum upgrade

Step 3 : Installaton Of Nginx Web Server

yum install nginx

Step 4 : Enable The Nginx Service

systemctl enable nginx

Step 5 : Start Nginx Service

systemctl start nginx

Step 6: Check Status Of Nginx Service

systemctl status nginx

Congratulations! You have made it!

Allow Webserver To Listen System Ports.

Example : Web Server Uses Ports 80 (http) , 443 (https)

Step 1: Check the status of your firewall.

firewall-cmd --state

Step 2: To Know The Active Network Adapters Present In Your System.

firewall-cmd --get-active-zones

Output:
libvirt
  interfaces: virbr0
public
  interfaces: enp0s3

Step 3: Temporarily Open port 80(http) and port 443(https) port.

firewall-cmd --zone=public --add-service=http

firewall-cmd --zone=public --add-service=https

Note, the above firewald commands will open http and https port only Temporarily.
Step 4: Permanently Open port 80(http) and port 443(https).

firewall-cmd --zone=public --permanent --add-service=http

firewall-cmd --zone=public --permanent --add-service=https

firewall-cmd --reload

Note, the above firewald commands will open http and https port Permanently.

Step 5: Check for open ports/services.

firewall-cmd --list-all

Output:
public (active)
  target: default
  icmp-block-inversion: no
  interfaces: enp0s3
  sources:
  services: http https
  ports:
  protocols:
  masquerade: no
  forward-ports:
  source-ports:
  icmp-blocks:
  rich rules:

Step 6: In case you need to close the previously open HTTP port 80 and HTTPS port 443 execute:

firewall-cmd --zone=public --permanent --remove-service=http

firewall-cmd --zone=public --permanent --remove-service=https

firewall-cmd --reload

Step 7: To Know Nginx Listening Ports

netstat -ltnp | grep nginx

Output:
tcp        0      0 0.0.0.0:80              0.0.0.0:*               LISTEN      40143/nginx: master
tcp        0      0 0.0.0.0:443             0.0.0.0:*               LISTEN      40143/nginx: master
tcp6       0      0 :::80                   :::*                    LISTEN      40143/nginx: master
tcp6       0      0 :::443                  :::*                    LISTEN      40143/nginx: master

Step 8: To Know Nginx Listening Processes:

ps aux | grep nginx

Congratulations! You have made it!

Path /etc/nginx/nginx.conf -> This is The Main File Pointing To Your Public/Static IP/Local or Dynamic IP(DHCP)

* Choose Editor To Edit The File

Example: vim,vi,nano,gedit (i’m Using vim editor)

user nginx;
worker_processes auto;
error_log /var/log/nginx/error.log;
pid /run/nginx.pid;

include /usr/share/nginx/modules/*.conf;

events {
worker_connections 1024;
}

http {
log_format main '$remote_addr - $remote_user [$time_local] "$request" '
'$status $body_bytes_sent "$http_referer" '
'"$http_user_agent" "$http_x_forwarded_for"';

# Modified - 1
access_log /var/log/nginx/access.log main;

sendfile on;
tcp_nopush on;
tcp_nodelay on;
keepalive_timeout 65;
types_hash_max_size 2048;

include /etc/nginx/mime.types;
default_type application/octet-stream;

# Load modular configuration files from the /etc/nginx/conf.d directory.
include /etc/nginx/conf.d/*.conf;

# Modified - 2
include /etc/nginx/sites-enabled/*.conf;
server_names_hash_bucket_size 64;

server {
listen 80 default_server;
listen [::]:80 default_server;
server_name _;
root /usr/share/nginx/html;

# Load configuration files for the default server block.
 include /etc/nginx/default.d/*.conf;

location / {
}

error_page 404 /404.html;
location = /40x.html {
}

error_page 500 502 503 504 /50x.html;
location = /50x.html {
}
       }

# Modified - 3

server {
listen 443 ssl http2 default_server;
listen [::]:443 ssl http2 default_server;
# server_name _;
server_name 202.153.32.18;
 return 301 https://www.learnlinux.com$request_uri;
root /var/www/learnlinux.in/html;

ssl_certificate "/etc/letsencrypt/live/learnlinux.in/fullchain.pem";
ssl_certificate_key "/etc/letsencrypt/live/learnlinux.in/privkey.pem";
ssl_session_cache shared:SSL:1m;
ssl_session_timeout 10m;
ssl_ciphers PROFILE=SYSTEM;
ssl_prefer_server_ciphers on;

# Load configuration files for the default server block.

location / {
}

error_page 404 /404.html;
location = /40x.html {
}

error_page 500 502 503 504 /50x.html;
location = /50x.html {
}
     }
}

Create Directory in

cd /etc/nginx/

mkdir sites-available

mkdir sites-enabled

cd /etc/nginx/sites-available

vim learnlinux.in.conf

ln -s /etc/nginx/sites-available/learnlinux.in.in.conf /etc/nginx/sites-enabled/learnlinux.in.conf

nginx -t

systemctl restart nginx

Configuration Of Virtual Domain vim /etc/nginx/sites-available/learnlinux.in.conf

server {
     server_name learnlinux.in www.learnlinux.in;
     root /var/www/learnlinux.in/html/
     index index.html index.htm index.php
     error_log /var/www/learnlinux.in/learnlinux.in.error;
     access_log /var/www/learnlinux.in/learnlinux.in.access;

     location / {
     }

     error_page 404 /404.html;

     location = /404.html {
     root /var/www/learnlinux.in/html/;
     internal;
     }

     location ~ /.well-known/acme-challenge {
     allow all;
     }

     location ~ ^/(README|INSTALL|LICENSE|CHANGELOG|UPGRADING)$ {
     deny all;
     }

     location ~ ^/(bin|SQL)/ {
     deny all;
     }

# A long browser cache lifetime can speed up repeat visits to your page
   location ~* \.(jpg|jpeg|gif|png|webp|svg|woff|woff2|ttf|css|js|ico|xml)$ {
   access_log off;
   log_not_found off;
   expires 360d;
   }
}

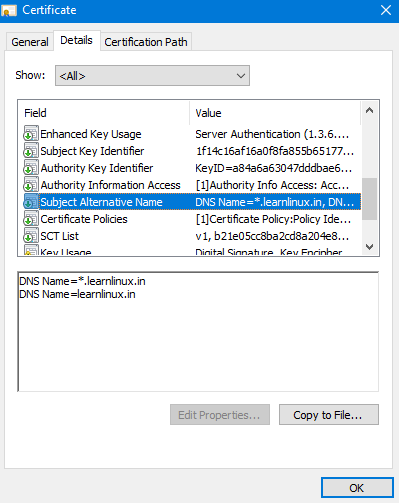

Wild Card *.example.in Positive SSL Certificate

yum install certbot

To Check Certbot Version

certbot --version

To Get Wildcard Certificate

sudo certbot certonly --manual -d *.learnlinux.in -d learnlinux.in --agree-tos --no-bootstrap --manual-public-ip-logging-ok --preferred-challenges dns-01 --server https://acme-v02.api.letsencrypt.org/directory

The command options above are explained below:

• certonly:                                         Obtain or renew a certificate, but do not install
• –manual:                                        Obtain certificates interactively
• –preferred-challenges=dns:      Use dns to authenticate domain ownership
• –server:                                          Specify the endpoint to use to generate
• –agree-tos:                                    Agree to the ACME server’s subscriber terms
• -d:                                                    Domain name to provide certificates for

Add Following Columns To Your DNS Server

A                       @            Static-IP                           1 Hour

A                       *            Static-IP                           1 Hour

CNAME                  www               @                             1/2 Hour

NS                      @       ns61.domaincontrol.com                   1 Hour

NS                      @       ns62.domaincontrol.com                   1 Hour

SOA                     @    Primary nameserver: ns61.domaincontrol.com. 1 Hour

TXT             _acme-challenge        Value                           1/2 Hour

TXT      _acme-challenge.example.in    Value                           1/2 Hour

To verify that the certificate is ready, run the commands below:

sudo certbot certificates

You’re all set!

Now, Let’s Encrypt’s certificates are valid for 90 days… You’ll want to setup a crob job to automate the renewal process… To do that, open crontab and add the entry below:

sudo crontab -e

Then add the line below and save…

0 1 * * * /usr/bin/certbot renew >> /var/log/letsencrypt/renew.log

Save and you’re done!

Congratulations! You have successfully learned how to generate Let’s Encrypt wildcard certificates…

Certificate File Location /etc/letsencrypt/live/(example.in) <– domain.in or .com or .net or .in or  .org

Now Add Certificate Files To nginx Configuration File /etc/nginx/sites-available/learnlinux.in.conf –> Server Block Done.

yum install php-fpm

systemctl enable php-fpm

systemctl start php-fpm

cd /etc/php-fpm-d/  -> vim www.conf

user nginx

group nginx

Step 3 :

listen = 127.0.0.1:9000

                                (Or)
Step 4:

listen = /run/php-fpm/www.sock

listen.allowed_clients = 127.0.0.1

Add Following Code in Nginx Configuration File If You Use Step 3:

location ~ \.php$ {
try_files $uri =404;
fastcgi_pass 127.0.0.1:9000;
fastcgi_index index.php;
fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
include fastcgi_params;
}

Add Following Code in Nginx Configuration File If You Use Step 4 :

location ~ \.php$ {
try_files $uri =404;
fastcgi_pass unix:/run/php-fpm/www.sock;
fastcgi_index index.php;
fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
include fastcgi_params;
}

For Step 3 Checking Listening port :

netstat -ltnp | grep 127.0.0.1:9000

server {

server_name learnlinux.in www.learnlinux.in;

client_max_body_size 100M;

root /var/www/learnlinux.in/html;

index index.php index.html index.htm;

error_log /var/www/learnlinux.in/learnlinux.in.error;
access_log /var/www/learnlinux.in/learnlinux.in.access;

location ~ \.php$ {
#try_files $uri =404;
#fastcgi_pass unix:/run/php-fpm/www.sock;
fastcgi_pass 127.0.0.1:9000;
fastcgi_index index.php;
fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
include fastcgi_params;
}

error_page 404 /404.html;
location = /404.html {
root /var/www/learnlinux.in/html/;
internal;
}

# Don't allow pages to be rendered in an iframe on external domains.
add_header X-Frame-Options "SAMEORIGIN";
# MIME sniffing prevention
add_header X-Content-Type-Options "nosniff";
# Enable cross-site scripting filter in supported browsers.
add_header X-Xss-Protection "1; mode=block";

# Enable Wordless Permananent Links
location / {
try_files $uri $uri/ /index.php?$args;
}

# Prevent access to certain file extensions
location ~\.(ini|log|conf)$ {
deny all;
}

location ~ /.well-known/acme-challenge {
allow all;
}
location ~ ^/(README|INSTALL|LICENSE|CHANGELOG|UPGRADING)$ {
deny all;
}
location ~ ^/(bin|SQL)/ {
deny all;
}
# A long browser cache lifetime can speed up repeat visits to your page
location ~* \.(jpg|jpeg|gif|png|webp|svg|woff|woff2|ttf|css|js|ico|xml)$ {
access_log off;
log_not_found off;
expires 360d;
}

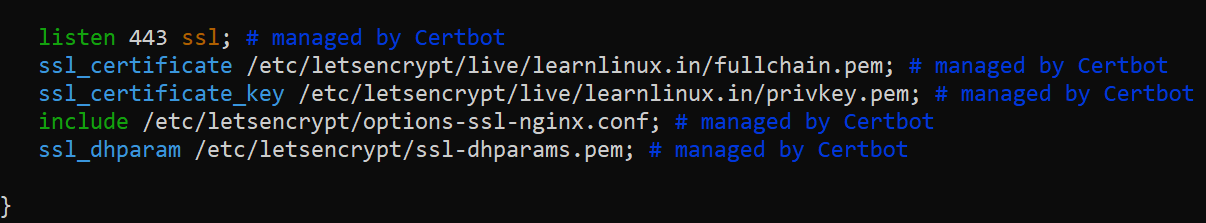

listen 443 ssl; # managed by Certbot
ssl_certificate /etc/letsencrypt/live/learnlinux.in/fullchain.pem; # managed by Certbot
ssl_certificate_key /etc/letsencrypt/live/learnlinux.in/privkey.pem; # managed by Certbot
include /etc/letsencrypt/options-ssl-nginx.conf; # managed by Certbot
ssl_dhparam /etc/letsencrypt/ssl-dhparams.pem; # managed by Certbot

}
server {
if ($host = learnlinux.in) {
return 301 https://www.$host$request_uri;
} # managed by Certbot

if ($host = www.learnlinux.in) {
return 301 https://$host$request_uri;
} # managed by Certbot

listen 80;
server_name learnlinux.in www.learnlinux.in;
return 404; # managed by Certbot

}
