Cent OS 8 / RHEL

Zimbra Troubleshooting

When Amavis,Antivirus,Cbpolicyd,opendkim,Or Any Other Services Not Running Do The Following Things:-

Services

To Enable Zimbra Services:-

zmprov ms `zmhostname` +zimbraServiceEnabled cbpolicyd
zmprov ms `zmhostname` +zimbraServiceEnabled stats
zmprov ms `zmhostname` +zimbraServiceEnabled archiving
zmprov ms `zmhostname` +zimbraServiceEnabled antivirus
zmprov ms `zmhostname` +zimbraServiceEnabled antispam
zmprov ms `zmhostname` +zimbraServiceEnabled amavis

To Disable Zimbra Services:-

zmprov ms `zmhostname` -zimbraServiceEnabled cbpolicyd
zmprov ms `zmhostname` -zimbraServiceEnabled stats
zmprov ms `zmhostname` -zimbraServiceEnabled archiving
zmprov ms `zmhostname` -zimbraServiceEnabled antivirus
zmprov ms `zmhostname` -zimbraServiceEnabled antispam
zmprov ms `zmhostname` -zimbraServiceEnabled amavis

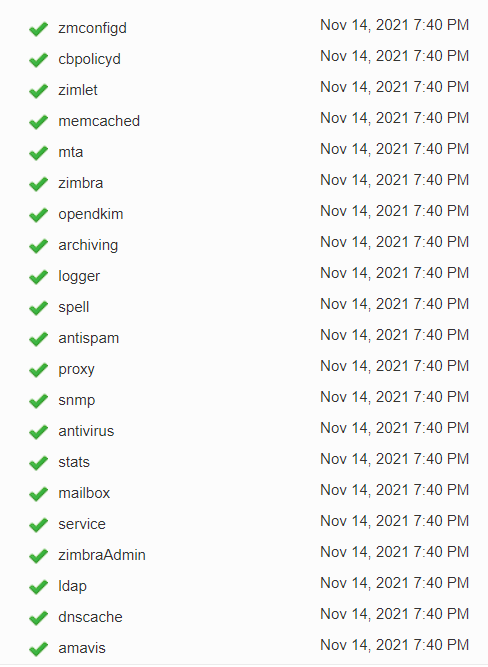

These Are The Services Need To Be Running In Zimbra Mail Server:-

Troubleshoot

To Check File Permissions In Zimbra Mail Server :-

 /opt/zimbra/libexec/zmfixperms -e -v

To Enable IPv6 ::1 [It May Cause Failure IN Running Zimbra Service ]

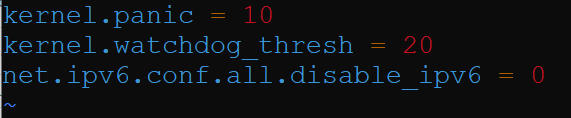

vim /etc/sysctl.d/99-sysctl.conf

sysctl --load /etc/sysctl.d/99-sysctl.conf

vim /etc/default/grub

add the following line in configuration:-

GRUB_CMDLINE_LINUX="$GRUB_CMDLINE_LINUX ipv6.disable=1"

The next step is to update the GRUB CFG files. Type the following command to locate the grub files.

ls -lh /etc/grub*.cfg

You will see 2 GRUB CFG file paths: /boot/grub2/grub.cfg and /boot/efi/EFI/centos/grub.cfg.

Type the following command to create a new GRUB configuration file and save it to /boot/grub2/grub.cfg.

grub2-mkconfig -o /boot/grub2/grub.cfg

Next, type the following command to create a new GRUB configuration file and save it to /boot/efi/EFI/centos/grub.cfg.

grub2-mkconfig -o /boot/efi/EFI/centos/grub.cfg

Finally, reboot your CentOS 8 machine.

reboot

After rebooting, type the following command to verify whether IPv6 is disabled.

ip a | grep inet6

Instant IPv6 Enable Command:-

sudo sysctl -w net.ipv6.conf.all.disable_ipv6=0

Instant IPv6 Disable:-

sudo sysctl -w net.ipv6.conf.all.disable_ipv6=1

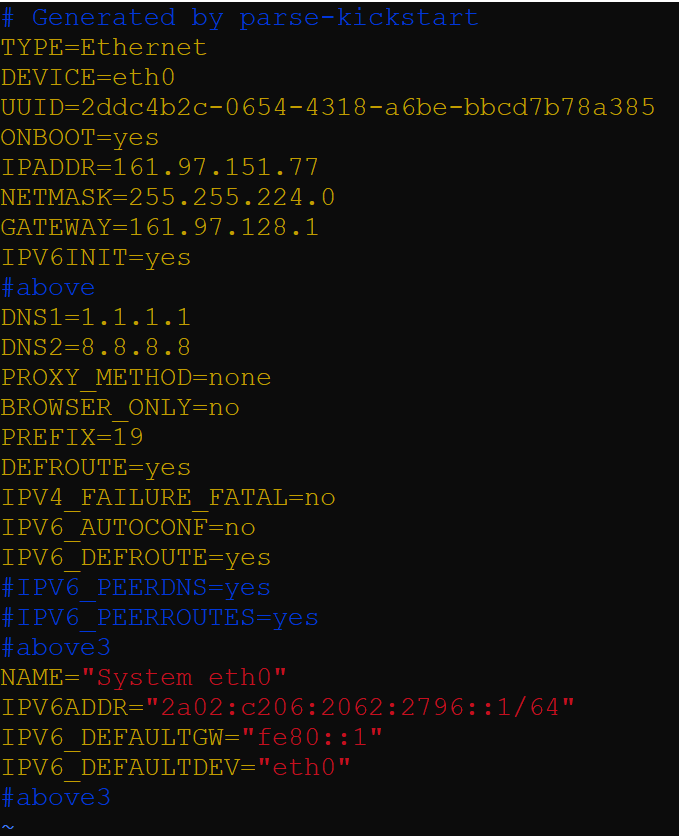

Network Adapter Configuration:-

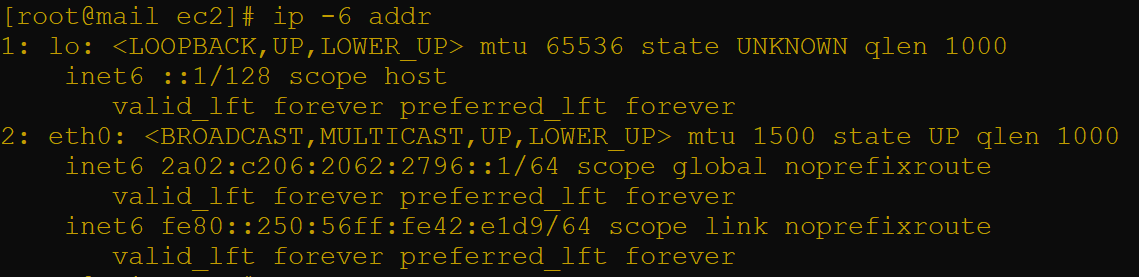

ip -6 addr

Frequency & Config

zmprov mcf zimbraLastLogonTimestampFrequency 1s

zmlocalconfig -e zmstat_df_excludes='/dev/loop0:/dev/loop1:/dev/loop2:/dev/loop3:/dev/loop4:/dev/loop5:/dev/loop6:/dev/loop7:/dev/loop8:/dev/loop9:/dev/loop10:/dev/loop11:/dev/loop13:/dev/loop12:/dev/loop14:/dev/loop15:/dev/loop16:/dev/loop17:/dev/loop18:/dev/loop19:/dev/loop20:tmpfs:/dev/sda2:/dev/sda1'

zmstatctl restart

zmcontrol status

sudo chattr -i /etc/shadow

sudo chattr -i /etcpasswd

zmlocalconfig -e cbpolicyd_min_servers=16
zmlocalconfig -e cbpolicyd_min_spare_servers=16
zmlocalconfig -e cbpolicyd_max_servers=128
zmlocalconfig -e cbpolicyd_max_requests=2000
zmlocalconfig -e cbpolicyd_max_spare_servers=32

DKIM:-

/opt/zimbra/libexec/zmdkimkeyutil -r -d <example.com>
/opt/zimbra/libexec/zmdkimkeyutil -a -d <example.com>
zmcontrol status zmdkimkeyutil

SSL New

sudo su - zimbra -c "zmproxyctl stop"
sudo su - zimbra -c "zmmailboxdctl stop"

You’ll see a number of files.

cert.pem: The actual certificate file
chain.pem: The chain file
fullchain.pem: Concatenation of cert.pem + chain.pem
privkey.pem: Private key

certbot -v certonly --dns-cloudflare-credentials /certbot/linoxcloud_com.ini --dns-cloudflare-propagation-seconds 60 -d *.linoxcloud.com -d linoxcloud.com --preferred-chain "ISRG Root X1"

rm -rf /opt/zimbra/ssl/zimbra/commercial/commercial.key

cp /etc/letsencrypt/live/linoxcloud.com/privkey.pem /opt/zimbra/ssl/zimbra/commercial/commercial.key

mkdir /opt/zimbra/ssl/letsencrypt/

CERTPATH=/etc/letsencrypt/live/linoxcloud.com

chown zimbra:zimbra /opt/zimbra/ssl/zimbra/commercial/commercial.key

sudo cp $CERTPATH/* /opt/zimbra/ssl/letsencrypt/

sudo chown -R zimbra:zimbra /opt/zimbra/ssl/letsencrypt/

chown 755 -R letsencrypt/

wget -O /tmp/ISRG-X1.pem https://letsencrypt.org/certs/isrgrootx1.pem.txt
cat /tmp/ISRG-X1.pem >> /opt/zimbra/ssl/letsencrypt/linoxcloud.com/chain.pem[or]
cat /tmp/ISRG-X1.pem >> /opt/zimbra/ssl/letsencrypt/chain.pem

sudo su - zimbra -c '/opt/zimbra/bin/zmcertmgr verifycrt comm /opt/zimbra/ssl/zimbra/commercial/commercial.key /opt/zimbra/ssl/letsencrypt/cert.pem /opt/zimbra/ssl/letsencrypt/chain.pem'

sudo su - zimbra -c '/opt/zimbra/bin/zmcertmgr deploycrt comm /opt/zimbra/ssl/letsencrypt/cert.pem /opt/zimbra/ssl/letsencrypt/chain.pem'

sudo su - zimbra -c "zmcontrol restart"

SSL Old

Step 1: Secure Zimbra Mail Server with Let’s Encrypt SSL Certificate

Create directory that will hold Let’s Encrypt certificates for Zimbra Server.

sudo mkdir /opt/zimbra/ssl/letsencrypt

Copy Certificate files.

CERTPATH=/etc/letsencrypt/live/mail.linoxcloud.com
sudo cp  $CERTPATH/* /opt/zimbra/ssl/letsencrypt/

Confirm files are copied successfully.

$ ls /opt/zimbra/ssl/letsencrypt/
cert.pem  chain.pem  fullchain.pem  privkey.pem  README

We now need to build a proper Intermediate CA plus Root CA. You must to use the IdenTrust root Certificate and merge it after the chain.pem.

https://letsencrypt.org/certs/trustid-x3-root.pem.txt

cat $CERTPATH/chain.pem | sudo tee /opt/zimbra/ssl/letsencrypt/zimbra_chain.pem

View the file contents:

$ cat /opt/zimbra/ssl/letsencrypt/zimbra_chain.pem
-----BEGIN CERTIFICATE-----
MIIEkjCCA3qgAwIBAgIQCgFBQgAAAVOFc2oLheynCDANBgkqhkiG9w0BAQsFADA/
MSQwIgYDVQQKExtEaWdpdGFsIFNpZ25hdHVyZSBUcnVzdCBDby4xFzAVBgNVBAMT
DkRTVCBSb290IENBIFgzMB4XDTE2MDMxNzE2NDA0NloXDTIxMDMxNzE2NDA0Nlow
SjELMAkGA1UEBhMCVVMxFjAUBgNVBAoTDUxldCdzIEVuY3J5cHQxIzAhBgNVBAMT
GkxldCdzIEVuY3J5cHQgQXV0aG9yaXR5IFgzMIIBIjANBgkqhkiG9w0BAQEFAAOC
AQ8AMIIBCgKCAQEAnNMM8FrlLke3cl03g7NoYzDq1zUmGSXhvb418XCSL7e4S0EF
q6meNQhY7LEqxGiHC6PjdeTm86dicbp5gWAf15Gan/PQeGdxyGkOlZHP/uaZ6WA8
SMx+yk13EiSdRxta67nsHjcAHJyse6cF6s5K671B5TaYucv9bTyWaN8jKkKQDIZ0
Z8h/pZq4UmEUEz9l6YKHy9v6Dlb2honzhT+Xhq+w3Brvaw2VFn3EK6BlspkENnWA
a6xK8xuQSXgvopZPKiAlKQTGdMDQMc2PMTiVFrqoM7hD8bEfwzB/onkxEz0tNvjj
/PIzark5McWvxI0NHWQWM6r6hCm21AvA2H3DkwIDAQABo4IBfTCCAXkwEgYDVR0T
AQH/BAgwBgEB/wIBADAOBgNVHQ8BAf8EBAMCAYYwfwYIKwYBBQUHAQEEczBxMDIG
CCsGAQUFBzABhiZodHRwOi8vaXNyZy50cnVzdGlkLm9jc3AuaWRlbnRydXN0LmNv
bTA7BggrBgEFBQcwAoYvaHR0cDovL2FwcHMuaWRlbnRydXN0LmNvbS9yb290cy9k
c3Ryb290Y2F4My5wN2MwHwYDVR0jBBgwFoAUxKexpHsscfrb4UuQdf/EFWCFiRAw
VAYDVR0gBE0wSzAIBgZngQwBAgEwPwYLKwYBBAGC3xMBAQEwMDAuBggrBgEFBQcC
ARYiaHR0cDovL2Nwcy5yb290LXgxLmxldHNlbmNyeXB0Lm9yZzA8BgNVHR8ENTAz
MDGgL6AthitodHRwOi8vY3JsLmlkZW50cnVzdC5jb20vRFNUUk9PVENBWDNDUkwu
Y3JsMB0GA1UdDgQWBBSoSmpjBH3duubRObemRWXv86jsoTANBgkqhkiG9w0BAQsF
AAOCAQEA3TPXEfNjWDjdGBX7CVW+dla5cEilaUcne8IkCJLxWh9KEik3JHRRHGJo
uM2VcGfl96S8TihRzZvoroed6ti6WqEBmtzw3Wodatg+VyOeph4EYpr/1wXKtx8/
wApIvJSwtmVi4MFU5aMqrSDE6ea73Mj2tcMyo5jMd6jmeWUHK8so/joWUoHOUgwu
X4Po1QYz+3dszkDqMp4fklxBwXRsW10KXzPMTZ+sOPAveyxindmjkW8lGy+QsRlG
PfZ+G6Z6h7mjem0Y+iWlkYcV4PIWL1iwBi8saCbGS5jN2p8M+X+Q7UNKEkROb3N6
KOqkqm57TH2H3eDJAkSnh6/DNFu0Qg==
-----END CERTIFICATE-----

Combine the chain.pem with the root CA – Order is chain before the root CA.

sudo tee -a /opt/zimbra/ssl/letsencrypt/zimbra_chain.pem<<EOF
-----BEGIN CERTIFICATE-----
MIIDSjCCAjKgAwIBAgIQRK+wgNajJ7qJMDmGLvhAazANBgkqhkiG9w0BAQUFADA/
MSQwIgYDVQQKExtEaWdpdGFsIFNpZ25hdHVyZSBUcnVzdCBDby4xFzAVBgNVBAMT
DkRTVCBSb290IENBIFgzMB4XDTAwMDkzMDIxMTIxOVoXDTIxMDkzMDE0MDExNVow
PzEkMCIGA1UEChMbRGlnaXRhbCBTaWduYXR1cmUgVHJ1c3QgQ28uMRcwFQYDVQQD
Ew5EU1QgUm9vdCBDQSBYMzCCASIwDQYJKoZIhvcNAQEBBQADggEPADCCAQoCggEB
AN+v6ZdQCINXtMxiZfaQguzH0yxrMMpb7NnDfcdAwRgUi+DoM3ZJKuM/IUmTrE4O
rz5Iy2Xu/NMhD2XSKtkyj4zl93ewEnu1lcCJo6m67XMuegwGMoOifooUMM0RoOEq
OLl5CjH9UL2AZd+3UWODyOKIYepLYYHsUmu5ouJLGiifSKOeDNoJjj4XLh7dIN9b
xiqKqy69cK3FCxolkHRyxXtqqzTWMIn/5WgTe1QLyNau7Fqckh49ZLOMxt+/yUFw
7BZy1SbsOFU5Q9D8/RhcQPGX69Wam40dutolucbY38EVAjqr2m7xPi71XAicPNaD
aeQQmxkqtilX4+U9m5/wAl0CAwEAAaNCMEAwDwYDVR0TAQH/BAUwAwEB/zAOBgNV
HQ8BAf8EBAMCAQYwHQYDVR0OBBYEFMSnsaR7LHH62+FLkHX/xBVghYkQMA0GCSqG
SIb3DQEBBQUAA4IBAQCjGiybFwBcqR7uKGY3Or+Dxz9LwwmglSBd49lZRNI+DT69
ikugdB/OEIKcdBodfpga3csTS7MgROSR6cz8faXbauX+5v3gTt23ADq1cEmv8uXr
AvHRAosZy5Q6XkjEGB5YGV8eAlrwDPGxrancWYaLbumR9YbK+rlmM6pZW87ipxZz
R8srzJmwN0jP41ZL9c8PDHIyh8bwRLtTcm1D9SZImlJnt1ir/md2cXjbDaJWFBM5
JDGFoqgCWjBH4d1QB7wCCZAA62RjYJsWvIjJEubSfZGL+T0yjWW06XyxV3bqxbYo
Ob8VZRzI9neWagqNdwvYkQsEjgfbKbYK7p2CNTUQ
-----END CERTIFICATE-----
EOF

Confirm the resulting file has the two certificates.

$ cat /opt/zimbra/ssl/letsencrypt/zimbra_chain.pem
-----BEGIN CERTIFICATE-----
MIIEkjCCA3qgAwIBAgIQCgFBQgAAAVOFc2oLheynCDANBgkqhkiG9w0BAQsFADA/
MSQwIgYDVQQKExtEaWdpdGFsIFNpZ25hdHVyZSBUcnVzdCBDby4xFzAVBgNVBAMT
DkRTVCBSb290IENBIFgzMB4XDTE2MDMxNzE2NDA0NloXDTIxMDMxNzE2NDA0Nlow
SjELMAkGA1UEBhMCVVMxFjAUBgNVBAoTDUxldCdzIEVuY3J5cHQxIzAhBgNVBAMT
GkxldCdzIEVuY3J5cHQgQXV0aG9yaXR5IFgzMIIBIjANBgkqhkiG9w0BAQEFAAOC
AQ8AMIIBCgKCAQEAnNMM8FrlLke3cl03g7NoYzDq1zUmGSXhvb418XCSL7e4S0EF
q6meNQhY7LEqxGiHC6PjdeTm86dicbp5gWAf15Gan/PQeGdxyGkOlZHP/uaZ6WA8
SMx+yk13EiSdRxta67nsHjcAHJyse6cF6s5K671B5TaYucv9bTyWaN8jKkKQDIZ0
Z8h/pZq4UmEUEz9l6YKHy9v6Dlb2honzhT+Xhq+w3Brvaw2VFn3EK6BlspkENnWA
a6xK8xuQSXgvopZPKiAlKQTGdMDQMc2PMTiVFrqoM7hD8bEfwzB/onkxEz0tNvjj
/PIzark5McWvxI0NHWQWM6r6hCm21AvA2H3DkwIDAQABo4IBfTCCAXkwEgYDVR0T
AQH/BAgwBgEB/wIBADAOBgNVHQ8BAf8EBAMCAYYwfwYIKwYBBQUHAQEEczBxMDIG
CCsGAQUFBzABhiZodHRwOi8vaXNyZy50cnVzdGlkLm9jc3AuaWRlbnRydXN0LmNv
bTA7BggrBgEFBQcwAoYvaHR0cDovL2FwcHMuaWRlbnRydXN0LmNvbS9yb290cy9k
c3Ryb290Y2F4My5wN2MwHwYDVR0jBBgwFoAUxKexpHsscfrb4UuQdf/EFWCFiRAw
VAYDVR0gBE0wSzAIBgZngQwBAgEwPwYLKwYBBAGC3xMBAQEwMDAuBggrBgEFBQcC
ARYiaHR0cDovL2Nwcy5yb290LXgxLmxldHNlbmNyeXB0Lm9yZzA8BgNVHR8ENTAz
MDGgL6AthitodHRwOi8vY3JsLmlkZW50cnVzdC5jb20vRFNUUk9PVENBWDNDUkwu
Y3JsMB0GA1UdDgQWBBSoSmpjBH3duubRObemRWXv86jsoTANBgkqhkiG9w0BAQsF
AAOCAQEA3TPXEfNjWDjdGBX7CVW+dla5cEilaUcne8IkCJLxWh9KEik3JHRRHGJo
uM2VcGfl96S8TihRzZvoroed6ti6WqEBmtzw3Wodatg+VyOeph4EYpr/1wXKtx8/
wApIvJSwtmVi4MFU5aMqrSDE6ea73Mj2tcMyo5jMd6jmeWUHK8so/joWUoHOUgwu
X4Po1QYz+3dszkDqMp4fklxBwXRsW10KXzPMTZ+sOPAveyxindmjkW8lGy+QsRlG
PfZ+G6Z6h7mjem0Y+iWlkYcV4PIWL1iwBi8saCbGS5jN2p8M+X+Q7UNKEkROb3N6
KOqkqm57TH2H3eDJAkSnh6/DNFu0Qg==
-----END CERTIFICATE-----
-----BEGIN CERTIFICATE-----
MIIDSjCCAjKgAwIBAgIQRK+wgNajJ7qJMDmGLvhAazANBgkqhkiG9w0BAQUFADA/
MSQwIgYDVQQKExtEaWdpdGFsIFNpZ25hdHVyZSBUcnVzdCBDby4xFzAVBgNVBAMT
DkRTVCBSb290IENBIFgzMB4XDTAwMDkzMDIxMTIxOVoXDTIxMDkzMDE0MDExNVow
PzEkMCIGA1UEChMbRGlnaXRhbCBTaWduYXR1cmUgVHJ1c3QgQ28uMRcwFQYDVQQD
Ew5EU1QgUm9vdCBDQSBYMzCCASIwDQYJKoZIhvcNAQEBBQADggEPADCCAQoCggEB
AN+v6ZdQCINXtMxiZfaQguzH0yxrMMpb7NnDfcdAwRgUi+DoM3ZJKuM/IUmTrE4O
rz5Iy2Xu/NMhD2XSKtkyj4zl93ewEnu1lcCJo6m67XMuegwGMoOifooUMM0RoOEq
OLl5CjH9UL2AZd+3UWODyOKIYepLYYHsUmu5ouJLGiifSKOeDNoJjj4XLh7dIN9b
xiqKqy69cK3FCxolkHRyxXtqqzTWMIn/5WgTe1QLyNau7Fqckh49ZLOMxt+/yUFw
7BZy1SbsOFU5Q9D8/RhcQPGX69Wam40dutolucbY38EVAjqr2m7xPi71XAicPNaD
aeQQmxkqtilX4+U9m5/wAl0CAwEAAaNCMEAwDwYDVR0TAQH/BAUwAwEB/zAOBgNV
HQ8BAf8EBAMCAQYwHQYDVR0OBBYEFMSnsaR7LHH62+FLkHX/xBVghYkQMA0GCSqG
SIb3DQEBBQUAA4IBAQCjGiybFwBcqR7uKGY3Or+Dxz9LwwmglSBd49lZRNI+DT69
ikugdB/OEIKcdBodfpga3csTS7MgROSR6cz8faXbauX+5v3gTt23ADq1cEmv8uXr
AvHRAosZy5Q6XkjEGB5YGV8eAlrwDPGxrancWYaLbumR9YbK+rlmM6pZW87ipxZz
R8srzJmwN0jP41ZL9c8PDHIyh8bwRLtTcm1D9SZImlJnt1ir/md2cXjbDaJWFBM5
JDGFoqgCWjBH4d1QB7wCCZAA62RjYJsWvIjJEubSfZGL+T0yjWW06XyxV3bqxbYo
Ob8VZRzI9neWagqNdwvYkQsEjgfbKbYK7p2CNTUQ
-----END CERTIFICATE-----

Set correct permissions for the directory:

sudo chown -R zimbra:zimbra /opt/zimbra/ssl/letsencrypt/

Confirm the owner is zimbra user.

$ ls -lha /opt/zimbra/ssl/letsencrypt/
total 32K
drwxr-xr-x. 2 zimbra zimbra 4.0K Jul  6 00:18 .
drwxr-xr-x. 8 zimbra zimbra 4.0K Jul  6 00:13 ..
-rw-r--r--. 1 zimbra zimbra 1.9K Jul  6 00:14 cert.pem
-rw-r--r--. 1 zimbra zimbra 1.7K Jul  6 00:14 chain.pem
-rw-r--r--. 1 zimbra zimbra 3.6K Jul  6 00:14 fullchain.pem
-rw-------. 1 zimbra zimbra 1.7K Jul  6 00:14 privkey.pem
-rw-r--r--. 1 zimbra zimbra  692 Jul  6 00:14 README
-rw-r--r--. 1 zimbra zimbra 2.8K Jul  6 00:23 zimbra_chain.pem

Verify your commercial certificate.

sudo su - zimbra -c '/opt/zimbra/bin/zmcertmgr verifycrt comm /opt/zimbra/ssl/letsencrypt/privkey.pem /opt/zimbra/ssl/letsencrypt/cert.pem /opt/zimbra/ssl/letsencrypt/zimbra_chain.pem'

Output should not give any errors or mismatch.

** Verifying '/opt/zimbra/ssl/letsencrypt/cert.pem' against '/opt/zimbra/ssl/letsencrypt/privkey.pem'
Certificate '/opt/zimbra/ssl/letsencrypt/cert.pem' and private key '/opt/zimbra/ssl/letsencrypt/privkey.pem' match.
** Verifying '/opt/zimbra/ssl/letsencrypt/cert.pem' against '/opt/zimbra/ssl/letsencrypt/zimbra_chain.pem'
Valid certificate chain: /opt/zimbra/ssl/letsencrypt/cert.pem: OK

Backup current certificate files.

sudo cp -a /opt/zimbra/ssl/zimbra /opt/zimbra/ssl/zimbra.$(date "+%Y%.m%.d-%H.%M")

Copy the private key under Zimbra SSL path.

sudo cp /opt/zimbra/ssl/letsencrypt/privkey.pem /opt/zimbra/ssl/zimbra/commercial/commercial.key
sudo chown zimbra:zimbra /opt/zimbra/ssl/zimbra/commercial/commercial.key

Finally deploy the new Let’s Encrypt SSL certificate.

sudo su - zimbra -c '/opt/zimbra/bin/zmcertmgr deploycrt comm /opt/zimbra/ssl/letsencrypt/cert.pem /opt/zimbra/ssl/letsencrypt/zimbra_chain.pem'

My certificate deployment output is as shown below.

** Verifying '/opt/zimbra/ssl/letsencrypt/cert.pem' against '/opt/zimbra/ssl/zimbra/commercial/commercial.key'
Certificate '/opt/zimbra/ssl/letsencrypt/cert.pem' and private key '/opt/zimbra/ssl/zimbra/commercial/commercial.key' match.
** Verifying '/opt/zimbra/ssl/letsencrypt/cert.pem' against '/opt/zimbra/ssl/letsencrypt/zimbra_chain.pem'
Valid certificate chain: /opt/zimbra/ssl/letsencrypt/cert.pem: OK
** Copying '/opt/zimbra/ssl/letsencrypt/cert.pem' to '/opt/zimbra/ssl/zimbra/commercial/commercial.crt'
** Copying '/opt/zimbra/ssl/letsencrypt/zimbra_chain.pem' to '/opt/zimbra/ssl/zimbra/commercial/commercial_ca.crt'
** Appending ca chain '/opt/zimbra/ssl/letsencrypt/zimbra_chain.pem' to '/opt/zimbra/ssl/zimbra/commercial/commercial.crt'
** Importing cert '/opt/zimbra/ssl/zimbra/commercial/commercial_ca.crt' as 'zcs-user-commercial_ca' into cacerts '/opt/zimbra/common/lib/jvm/java/lib/security/cacerts'
** NOTE: restart mailboxd to use the imported certificate.
** Saving config key 'zimbraSSLCertificate' via zmprov modifyServer mail.computingforgeeks.com...ok
** Saving config key 'zimbraSSLPrivateKey' via zmprov modifyServer mail.computingforgeeks.com...ok
** Installing imapd certificate '/opt/zimbra/conf/imapd.crt' and key '/opt/zimbra/conf/imapd.key'
** Copying '/opt/zimbra/ssl/zimbra/commercial/commercial.crt' to '/opt/zimbra/conf/imapd.crt'
** Copying '/opt/zimbra/ssl/zimbra/commercial/commercial.key' to '/opt/zimbra/conf/imapd.key'
** Creating file '/opt/zimbra/ssl/zimbra/jetty.pkcs12'
** Creating keystore '/opt/zimbra/conf/imapd.keystore'
** Installing ldap certificate '/opt/zimbra/conf/slapd.crt' and key '/opt/zimbra/conf/slapd.key'
** Copying '/opt/zimbra/ssl/zimbra/commercial/commercial.crt' to '/opt/zimbra/conf/slapd.crt'
** Copying '/opt/zimbra/ssl/zimbra/commercial/commercial.key' to '/opt/zimbra/conf/slapd.key'
** Creating file '/opt/zimbra/ssl/zimbra/jetty.pkcs12'
** Creating keystore '/opt/zimbra/mailboxd/etc/keystore'
** Installing mta certificate '/opt/zimbra/conf/smtpd.crt' and key '/opt/zimbra/conf/smtpd.key'
** Copying '/opt/zimbra/ssl/zimbra/commercial/commercial.crt' to '/opt/zimbra/conf/smtpd.crt'
** Copying '/opt/zimbra/ssl/zimbra/commercial/commercial.key' to '/opt/zimbra/conf/smtpd.key'
** Installing proxy certificate '/opt/zimbra/conf/nginx.crt' and key '/opt/zimbra/conf/nginx.key'
** Copying '/opt/zimbra/ssl/zimbra/commercial/commercial.crt' to '/opt/zimbra/conf/nginx.crt'
** Copying '/opt/zimbra/ssl/zimbra/commercial/commercial.key' to '/opt/zimbra/conf/nginx.key'
** NOTE: restart services to use the new certificates.
** Cleaning up 3 files from '/opt/zimbra/conf/ca'
** Removing /opt/zimbra/conf/ca/ca.key
** Removing /opt/zimbra/conf/ca/6703d76b.0
** Removing /opt/zimbra/conf/ca/ca.pem
** Copying CA to /opt/zimbra/conf/ca
** Copying '/opt/zimbra/ssl/zimbra/ca/ca.key' to '/opt/zimbra/conf/ca/ca.key'
** Copying '/opt/zimbra/ssl/zimbra/ca/ca.pem' to '/opt/zimbra/conf/ca/ca.pem'
** Creating CA hash symlink '6703d76b.0' -> 'ca.pem'
** Creating /opt/zimbra/conf/ca/commercial_ca_1.crt
** Creating CA hash symlink '4f06f81d.0' -> 'commercial_ca_1.crt'
** Creating /opt/zimbra/conf/ca/commercial_ca_2.crt
** Creating CA hash symlink '2e5ac55d.0' -> 'commercial_ca_2.crt'

Restart the nginx or jetty services stopped earlier.

$ sudo su - zimbra -c "zmcontrol restart"

Host mail.linoxcloud.com
	Stopping zmconfigd...Done.
	Stopping zimlet webapp...Done.
	Stopping zimbraAdmin webapp...Done.
	Stopping zimbra webapp...Done.
	Stopping service webapp...Done.
	Stopping stats...Done.
	Stopping mta...Done.
	Stopping spell...Done.
	Stopping snmp...Done.
	Stopping cbpolicyd...Done.
	Stopping archiving...Done.
	Stopping opendkim...Done.
	Stopping amavis...Done.
	Stopping antivirus...Done.
	Stopping antispam...Done.
	Stopping proxy...Done.
	Stopping memcached...Done.
	Stopping mailbox...Done.
	Stopping logger...Done.
	Stopping dnscache...Done.
	Stopping ldap...Done.
Host mail.linoxcloud.com
	Starting ldap...Done.
	Starting zmconfigd...Done.
	Starting dnscache...Done.
	Starting logger...Done.
	Starting mailbox...Done.
	Starting memcached...Done.
	Starting proxy...Done.
	Starting amavis...Done.
	Starting antispam...Done.
	Starting antivirus...Done.
	Starting opendkim...Done.
	Starting snmp...Done.
	Starting spell...Done.
	Starting mta...Done.
	Starting stats...Done.
	Starting service webapp...Done.
	Starting zimbra webapp...Done.
	Starting zimbraAdmin webapp...Done.
	Starting zimlet webapp...Done.
